CRM cards

Within a public app, you can create custom CRM cards to display information from other systems on HubSpot contact, company, deal, and ticket records. Each app can include up to 25 CRM cards.

Please note: the CRM cards referenced in this article are different from the custom cards you can create as UI extensions with projects. The CRM cards included in this article are intended for use with public apps, not private apps created with projects.

Example use case: you're building an integration for the App Marketplace for your bug tracking software. You want to be able to surface tracked bugs on contact records so that support reps can reference them when working with customers. Your app can define a custom card that displays this info right on the HubSpot contact record.
CRM_Card_1Cards can be defined as part of your app’s feature settings. Once the app is installed and a user views the target CRM records, HubSpot makes an outbound request to the app, retrieves the relevant data, and displays it in a card on the record page. Apps can also specify custom actions the user can take based on this information. For example, your app could include an action to open a modal for displaying the app's own UI in HubSpot.


Scope requirements

To create custom CRM cards, your app has to request the OAuth scopes needed to modify the CRM records where your card will appear. For example, for a CRM card to appear on contact records, the app must have the and crm.objects.contacts.write scopes. If you later need to remove CRM object scopes from your app, you'll first need to delete all existing cards for those object types.

See the OAuth documentation for more details about scopes and setting up the authorization URL for your app.

Create a CRM card

You can create CRM cards for your app either through the API or by editing your app in your developer account. To learn more about configuring a card through the API, check out the Endpoints tab at the top of the article.

To create a CRM card using HubSpot's UI:

    • In your HubSpot developer account, navigate to Apps in the main navigation.
    • Select the app where you want to add a card.
    • In the left sidebar menu, select CRM cards.
    • In the upper right, click Create CRM card.

Below, learn more about the configuration options in each tab.

Data request

When a user HubSpot views a CRM record that the CRM card is on, HubSpot will make a data fetch request to the integration. This request is made to the specified target URL, which includes a set of default query parameters, along with extra parameters containing property data as specified in the card's settings.


  • In the Data fetch URL field, enter the URL that you'll be fetching data from. In the API, this URL is added to the targetUrl field.

  • In the Target record types section, click to toggle the switches on to select which CRM records the card will appear on. Then, Use the Properties sent from HubSpot dropdown menus to select the HubSpot properties that will be included as query parameters in the request URL. In the API, each record type and its corresponding properties are added as objects in the objectTypes array.
// Example data fetch configuration { "title": "New CRM Card", "fetch": { "targetUrl": "", "objectTypes": [ { "name": "contacts", "propertiesToSend": [ "firstname", "email", "lastname" ] } ] } ... }

Example request

The above configuration would result in HubSpot sending its GET request as follows.
Use this table to describe parameters / fields

The ID of the HubSpot user that loaded the CRM record.


The email address of the user that loaded the CRM record.


The ID of the CRM record that loaded.


The type of CRM record that loaded (e.g., contact, company, deal).


The ID of the HubSpot account where the CRM record loaded.


The contact's first name, as specified in the Properties sent from HubSpot dropdown menu (in-app) and propertiesToSend array (API).


The contact's email address, as specified in the Properties sent from HubSpot dropdown menu (in-app) and propertiesToSend array (API).


The contact's last name, as specified in the Properties sent from HubSpot dropdown menu (in-app) and propertiesToSend array (API).

Please note: requests will timeout after five seconds. Within that, a connection must be made within three seconds.

Example response

Below is an example response that the integrator might provide to the above request.

results  array

An array of up to five valid card properties. If more card properties are available for a specific CRM object, your app can link to them.

objectId  number (required)

A unique ID for this object.

title  string (required)

The title of this object.

link  string

The URL that the user can follow to get more details about the object. This property is optional, but if no objects have a link, you should provide a value of null.

created  string (required)

A custom property as defined in the card's settings that denotes the date of the object's creation.

priority  string (required)

A custom property as defined in the card's settings that denotes external ticket's priority level.

actions  array

A list of available actions a user can take.

properties  string

A list of custom properties that aren't defined in the card settings. You can use this list to display a specific object's unique properties. These properties will be shown in the order they're provided, but after the properties defined in the card settings.

settingsAction  object

An iframe action that enables users to update the app's settings.

primaryAction  object

The primary action for a record type, typically a creation action.

secondaryActions  array

A list of actions displayed on the card.

// Example response { "results": [ { "objectId": 245, "title": "API-22: APIs working too fast", "link": "", "created": "2016-09-15", "priority": "HIGH", "project": "API", "description": "Customer reported that the APIs are just running too fast. This is causing a problem in that they're so happy.", "reporter_type": "Account Manager", "status": "In Progress", "ticket_type": "Bug", "updated": "2016-09-28", "actions": [ { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Edit", "associatedObjectProperties": [] }, { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Reassign", "associatedObjectProperties": [] }, { "type": "ACTION_HOOK", "httpMethod": "PUT", "associatedObjectProperties": [], "uri": "", "label": "Resolve" }, { "type": "CONFIRMATION_ACTION_HOOK", "confirmationMessage": "Are you sure you want to delete this ticket?", "confirmButtonText": "Yes", "cancelButtonText": "No", "httpMethod": "DELETE", "associatedObjectProperties": [ "protected_account" ], "uri": "", "label": "Delete" } ] }, { "objectId": 988, "title": "API-54: Question about bulk APIs", "link": "", "created": "2016-08-04", "priority": "HIGH", "project": "API", "reported_by": "", "description": "Customer is not able to find documentation about our bulk Contacts APIs.", "reporter_type": "Support Rep", "status": "Resolved", "ticket_type": "Bug", "updated": "2016-09-23", "properties": [ { "label": "Resolved by", "dataType": "EMAIL", "value": "" }, { "label": "Resolution type", "dataType": "STRING", "value": "Referred to documentation" }, { "label": "Resolution impact", "dataType": "CURRENCY", "value": "94.34", "currencyCode": "GBP" } ], "actions": [ { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Edit" }, { "type": "CONFIRMATION_ACTION_HOOK", "confirmationMessage": "Are you sure you want to delete this ticket?", "confirmButtonText": "Yes", "cancelButtonText": "No", "httpMethod": "DELETE", "associatedObjectProperties": [ "protected_account" ], "uri": "", "label": "Delete" } ] } ], "settingsAction": { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Settings" }, "primaryAction": { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Create Ticket" } }

Request signatures

To ensure that the requests are actually coming from HubSpot, the following request header is included. This header will contain a hash of the of the app secret for your application and the details of the request.

X-HubSpot-Signature: <some base64 string>

To verify this signature, perform the following steps:

  1. Create a string that concatenates together the following: <app secret> + <HTTP method> + <URL> + <request body> (if present).
  2. Create a SHA-256 hash of the resulting string.
  3. Compare the hash value to the signature. If they're equal, the request passed validation. If the values do not match, the request may have been tampered with in transit or someone may be spoofing requests to your endpoint.

Card properties

On the Card Properties tab, define any custom properties that you want HubSpot to display on the CRM card. Once defined, the integration can fill these properties by including them in its response.

    • Click Add property to add a new property for the card to display. The payload you provide in response to the data fetch call should contain values for all of these properties.
    • In the right panel, set the property's unique name, display label, and data type. You can select from the following types: CurrencyDateDatetimeEmailLinkNumericStatus, and StringLearn more about using extension property types.
    • Click Add to save the property.

When HubSpot sends its data request, the integration can provide values for these properties in its response alongside other values in each object in results. In addition to the properties configured on this tab, the integration can also include its own custom properties without needing them to be defined in the card's settings.

For example, in the response below, created and priority are both defined in the Card properties tab, while the properties array sends its own property definitions and values. These object-specific properties must be defined per object.

// Example object within a response { "objectId": 988, "title": "API-54: Question about bulk APIs", "link": "", "created": "2016-08-04", "priority": "HIGH", "properties": [ { "label": "Resolved by", "dataType": "EMAIL", "value": "" }, { "label": "Resolution type", "dataType": "STRING", "value": "Referred to documentation" }, { "label": "Resolution impact", "dataType": "CURRENCY", "value": "94.34", "currencyCode": "GBP" } ], "actions": [ ... ] }

When sending custom properties, the dataType field for each property can be set to one of: CURRENCY, DATE, DATETIME, EMAIL, LINK, NUMERIC, STATUS, STRING. Depending on the property type, the integration may need to provide additional fields. Below, learn more about each property type.

Currency properties

CURRENCY properties must include a currencyCode, which needs to be a valid ISO 4217 code. This will ensure the user sees the correct currency symbol and number formatting.

// Example custom currency property { "results": [ { "properties": [ { "label": "Resolution impact", "dataType": "CURRENCY", "value": "94.34", "currencyCode": "GBP" } ] } ] }

Date properties

DATE properties should be in the format yyyy-mm-dd. These properties will be displayed in a format appropriate to the user's locale. If you need to include a timestamp, you should instead use a DATETIME property.

// Example custom date property { "results": [ { "properties": [ { "label": "Date", "dataType": "DATE", "value": "2023-10-13" } ] } ] }

Datetime properties

DATETIME properties indicate a specific time and must be provided as milliseconds since epoch. These properties will be displayed in a format appropriate to the user's locale.

// Example custom datetime property { "results": [ { "properties": [ { "label": "Timestamp", "dataType": "DATETIME", "value": "1697233678777" } ] } ] }

Email properties

EMAIL properties are for values that contain an email address. These properties will be displayed as mailto links.

// Example custom email property { "results": [ { "properties": [ { "label": "Email address", "dataType": "EMAIL", "value": "" } ] } ] }

LINK properties display hyperlinks and open in a new window. You can specify a linkLabel, otherwise the URL itself will be displayed.

// Example custom link property { "results": [ { "properties": [ { "label": "Link property", "dataType": "LINK", "value": "", "linkLabel": "Test link" } ] } ] }

Numeric properties

NUMERIC properties display numbers.

// Example custom datetime property { "results": [ { "properties": [ { "label": "Number", "dataType": "NUMERIC", "value": "123.45" } ] } ] }

Status properties

STATUS properties display as colored indicators. To define a status property, the integration must provide an optionType that describes the possible statuses. Statuses include:

  • DEFAULT: Grey
  • SUCCESS: Green
  • WARNING: Yellow
  • DANGER: Red
  • INFO: Blue
// Example custom datetime property { "results": [ { "properties": [ { "label": "Status", "dataType": "STATUS", "value": "Errors occurring", "optionType": "DANGER" } ] } ] }

String properties

STRING properties display text.

// Example custom datetime property { "results": [ { "properties": [ { "label": "First name", "dataType": "STRING", "value": "Tim Robinson" } ] } ] }

Custom actions

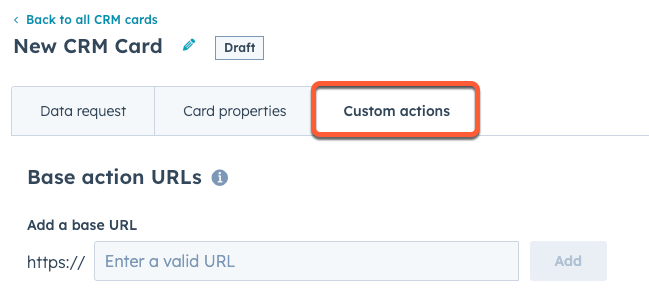

On the Custom actions tab, you can define the base URLs that will be requested when a user clicks an action button.. You can include multiple action URLs for various actions in your CRM card. Card actions must call an endpoint specified on this tab.
private-app-create-crm-card-custom-actions-tabRequests will include a X-HubSpot-Signature header. See request signatures for more information.

Action URLs are accessed in the uri field in an action. Similar to the data fetch request, action hooks will include a default set of query parameters. You can include other query parameters by including an associatedObjectProperties field in the action.

The response will vary depending on type of action. Below, learn more about action types.

Action types

Iframe actions

IFRAME actions will open a modal containing an iframe pointing at the provided URL.

// Example iframe action { "type": "IFRAME", "width": 890, "height": 748, "uri": "", "label": "Edit", "associatedObjectProperties": [ "some_crm_property" ] }

When the user is done completing an action inside the iframe, the modal should close and return the user to the CRM record they started from. To close the modal, the integration can use window.postMessage to signal to the CRM that the user is done. The following messages are accepted:

  • {"action": "DONE"}: the user has successfully competed the action.
  • {"action": "CANCEL"}: the user has canceled the action.
// Example iframe close message window.parent.postMessage(JSON.stringify({"action": "DONE"}), "*");

Action hook actions

ACTION_HOOK actions send a server-side request to the integrator. The only UI a users sees for this action is a success or error message. This type of action is useful for simple operations that require no further input from the user.

// Example action hook action { "type": "ACTION_HOOK", "httpMethod": "POST", "uri": "", "label": "Example action", "associatedObjectProperties": [ "some_crm_property" ] }

The httpMethod can be set to  GET, POST, PUT, DELETE, or PATCH If using GET or DELETE, the associatedObjectProperties values will be appended to the request URL as query parameters. Otherwise, the properties will be sent in the request body.

// Example iframe close message window.parent.postMessage(JSON.stringify({"action": "DONE"}), "*");

Confirmation actions

CONFIRMATION_ACTION_HOOK actions behave the same as ACTION_HOOK actions, except that a confirmation dialog is shown to the user before running the server-side request.

// Example action hook action { "type": "CONFIRMATION_ACTION_HOOK", "httpMethod": "POST", "uri": "", "label": "Example action", "associatedObjectProperties": [ "some_crm_property" ], "confirmationMessage": "Are you sure you want to run example action?", "confirmButtonText": "Yes", "cancelButtonText": "No" }

The httpMethod can be set to  GET, POST, PUT, DELETE, or PATCH If using GET or DELETE, the associatedObjectProperties values will be appended to the request URL as query parameters. Otherwise, the properties will be sent in the request body.
