Fetching data for UI extensions

UI extensions can be built to request data from an external source using the hubspot.fetch() API. At a high level, to fetch data using this method, you’ll need to:

Provide a REST-based back-end service to handle requests.
Include the request URLs as permittedUrls in the app’s configuration.

Please note: apps that use Sensitive Data scopes cannot use hubspot.fetch(), preventing Sensitive Data from being sent to external services.

Below, learn more about using hubspot.fetch() to request data from a UI extension.

Limits

Requests made with hubspot.fetch() are subject to the following limits:

Each app is allowed up to 20 concurrent requests per account that it’s installed in. Additional requests will be rejected with the status code 429, and can be retried after a delay.
Each request has a default timeout of 15 seconds, which can be increased up to 120 seconds (2 minutes) using the timeout option. Both request and response payloads are limited to 1MB. Request duration time includes the time required to establish an HTTP connection. HubSpot will automatically retry a request once if there are issues establishing a connection, or if the request fails with a 5XX status code within the timeout window.

If you’re familiar with using the browser Fetch API, note that hubspot.fetch() is not a one-to-one replacement. Key differences between the two APIs are listed below.

Feature	Native `fetch()`	`hubspot.fetch()`
Custom headers	Supported	Not supported
Credentials mode	Supported	Not supported
Cache control	Supported	Not supported
Timeout	Browser default	15 seconds default, 120 seconds max
Payload size	Large	1MB max
URL requirements	Any URL	Must be in `permittedUrls`

Method

The method contract for hubspot.fetch() is as follows:

import { hubspot } from '@hubspot/ui-extensions';

interface Options {
  method?: 'GET' | 'PUT' | 'POST' | 'DELETE' | 'PATCH';
  timeout?: number;
  body?: {
    [key: string  | number]: unknown;
  }
}

hubspot.fetch(resource: string | URL): Promise<Response>
hubspot.fetch(resource: string, options?: Options): Promise<Response>

Parameter	Type	Description
`method`	String	The method to use.
`timeout`	Number	Time in milliseconds to allow for the request to complete before timing out. Maximum value is 120000 (2 minutes). When not specified, the default timeout is 15 seconds. Request duration time includes the time required to establish an HTTP connection. HubSpot will retry a request once if there are issues establishing a connection, or if the request fails with a `5XX` status code within the timeout window.
`body`	Object	The request body.

hubspot.fetch() does not support request and response headers. The HubSpot signature must be used to perform authentication/authorization in your back-end. For security reasons, you should not store secrets in your React code to communicate with third-party back-ends. Instead, use your own back-end to fetch data from other third-party APIs after validating the HubSpot signature on the request.

Specify URLs to fetch from

To make calls to your backend or a third-party service, update the app’s *-hsmeta.json configuration file to include the URLs you’ll be requesting. The URLs must be specified in the fetch array of permittedUrls. Note that fetch URLs must be valid HTTPS URLs and cannot be localhost. If you want to send requests to a locally running back-end, learn how to proxy requests.

"permittedUrls": {
    "fetch": ["https://api.example.com/api/data/"],
    "img": [],
    "iframe": []
}

When running the local development server, any hubspot.fetch() request will still go to your hosted back-end via a HubSpot-managed data fetch service. If you need to update the allowlist while running the dev server, you’ll need to run hs project upload for the change to take effect.

Headers and metadata

To ensure that the requests hitting your back-end are coming from HubSpot, several headers are included in the request. You can use these headers, along with the incoming request fields, to verify the signature of the request. Learn more about validating HubSpot requests. HubSpot will always populate headers related to request signing and also allow you to pass an Authorization header from hubspot.fetch(). See the example hubspot.fetch() request with Authorization header for more information.

While you can use hubspot.fetch() to pass an Authorization request header, hubspot.fetch() does not pass other client-supplied request headers or return response headers set by your back-end server.

HubSpot also automatically adds the following query parameters to each request to supply metadata: userId, portalId, userEmail, and appId. As the request URL is hashed as part of the signature header, this will help you securely retrieve the identity of the user making requests to your back-end.

If you’re not seeing appended metadata passed with hubspot.fetch() requests, check whether you have a local.json file that’s currently rerouting requests via a proxy. If so, disable this local data fetch feature by renaming the file to local.json.bak and restarting the development server.

Proxying requests to a locally running back-end

If you have a locally running back-end, you can set up a proxy to remap hubspot.fetch() requests made during local development. This proxy is configured through a local.json file in your project, and will prevent requests from being routed through HubSpot’s data fetch service. To proxy requests to a locally running back-end:

Create a local.json file in the same directory as your public-app.json file. In this file, define a proxy that remaps requests made using hubspot.fetch(). This mapping will only happen for the locally running extension. You can include multiple proxy key-value pairs in the proxy object.

{
  "proxy": {
    "https://example.com": "http://localhost:8080"
  }
}

Each proxy URL must be a valid URL and use HTTPS.
Path-based routing is not supported. For example, the following proxy won’t work: "https://example.com/a": "http://localhost:8080"

Upload your project by running hs project upload.

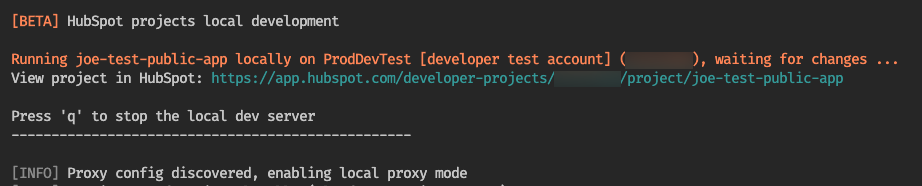

With your project uploaded, run hs project dev to start the development server. The CLI should confirm that it has detected your proxy.
When you request the mapped URL using hubspot.fetch(), the CLI will confirm the remapping.

Request signatures during proxied local development

By default, when proxying requests during local development, requests will not be signed or include metadata in query parameters. However, if you want to introduce request signing into the local development process, you can inject the CLIENT_SECRET environment variable into the local development process.

Injecting CLIENT_SECRET

After setting up your local.json file to proxy specific domains, you can inject the CLIENT_SECRET variable when starting the local development server by prepending the hs project dev command with the variable:

CLIENT_SECRET="abc123" hs project dev

Note that this doesn’t have to be a real CLIENT_SECRET value, as long as you inject the same variable in your locally running back-end that you’re using for hs project dev. For example, your back-end might include the following Node or Python code:

CLIENT_SECRET="abc123" node my-app.js
// and also
CLIENT_SECRET="abc123" npm run dev

And to access the CLIENT_SECRET variable:

console.log(process.env.CLIENT_SECRET);

Once you’ve finalized your request signing logic and have permanently added it to your back-end code, you’ll need to inject the CLIENT_SECRET variable from your app into the hs project dev command permanently. For ease of use, consider baking the variable into your start scripts for local development. To validate HubSpot request signatures in your custom back-end, check out the request validation guide. You can also use HubSpot’s @hubspot/api-client npm module to verify requests and sign them yourself. For example:

import { Signature } = from '@hubspot/api-client'

const url = `${req.protocol}://${req.header('host')}${req.url}`
const method = req.method;
const clientSecret = process.env.CLIENT_SECRET
const signatureV3 = req.header('X-HubSpot-Signature-v3');
const timestamp = req.header('X-HubSpot-Request-Timestamp');

// Reject the request if the timestamp is older than 5 minutes.
if (parseInt(timestamp, 10) < (Date.now() - 5 * 60 * 1000)) {
  throw Error('Bad request. Timestamp too old.')
}

const requestBody = req.body === undefined || req.body === null
  ? ''
  : req.body;

const validV3 = Signature.isValid({
  signatureVersion: 'v3',
  signature: signatureV3,
  method,
  clientSecret,
  requestBody,
  url,
  timestamp,
});

if (!validV3) {
  throw Error('Bad request. Invalid signature.')
}

hubspot.fetch examples

Below are examples of hubspot.fetch requests to illustrate promise chaining, async/await, and authorization header usage.

Promise chaining

import React, { useEffect } from "react";
import { hubspot, Text } from "@hubspot/ui-extensions";

hubspot.extend(({ context }) => <Hello context={context} />);

const Hello = ({ context }) => {
  useEffect(() => {
    let url = "https://run.mocky.io/v3/98c56581"; // replace with your own
    hubspot
      .fetch(url, {
        timeout: 2_000,
        method: "GET",
      })
      .then(response => {
        console.log("Server response:", response.status);
        response
          .json()
          .then(data => console.log(data))
          .catch(err => console.error("Failed to parse as json", err));
      })
      .catch(err => {
        console.error("Something went wrong", err);
      });
  }, []);

  return <Text>Hello world</Text>;
};

Async/await

import React, { useEffect } from "react";
import { hubspot, Text } from "@hubspot/ui-extensions";

hubspot.extend(({ context }) => <Hello context={context} />);

const Hello = ({ context }) => {
  useEffect(() => {
    const fetchData = async () => {
      let url = "https://run.mocky.io/v3/98c56581"; // replace with your own
      const response = await hubspot.fetch(url, {
        timeout: 2_000,
        method: "GET",
      });
      console.log("Server response:", response.status);
      try {
        const data = await response.json();
        console.log(data);
      } catch (err) {
        console.error("Failed to parse as json", err);
      }
    };
    fetchData().catch(err => console.error("Something went wrong", err));
  }, []);

  return <Text>Hello world</Text>;
};

Authorization header

You may return a short-lived authorization token from your back-end service after validating the HubSpot signature. You can then use this token to access other resources. To get the access token from your back-end server in the UI extension:

hubspot.fetch(`${BACKEND_ENDPOINT}/get-access-token`, {
  timeout: 3000,
  method: 'GET',
})
.then((response: Response) => {
  response.json().then((data) => setAccessToken(data.accessToken));
})

To return a short-lived access token from your back-end server:

app.get("/get-access-token", (req, res) => {
  validateHubspotSignatureOrThrow(req);
  res.json({
    accessToken: generateShortLivedAccessToken(req.query.userEmail),
    expiryTime: addMinutes(currentTime, 10),
  });
});

To attach access tokens to other UI extension requests:

hubspot.fetch('https://www.oauth-enabled-api.com/', {
  timeout: 3000,
  method: 'GET',
  headers: {
    'Authorization': `Bearer ${accessToken}`
  }
}).then((response: Response) => {
  ...
})

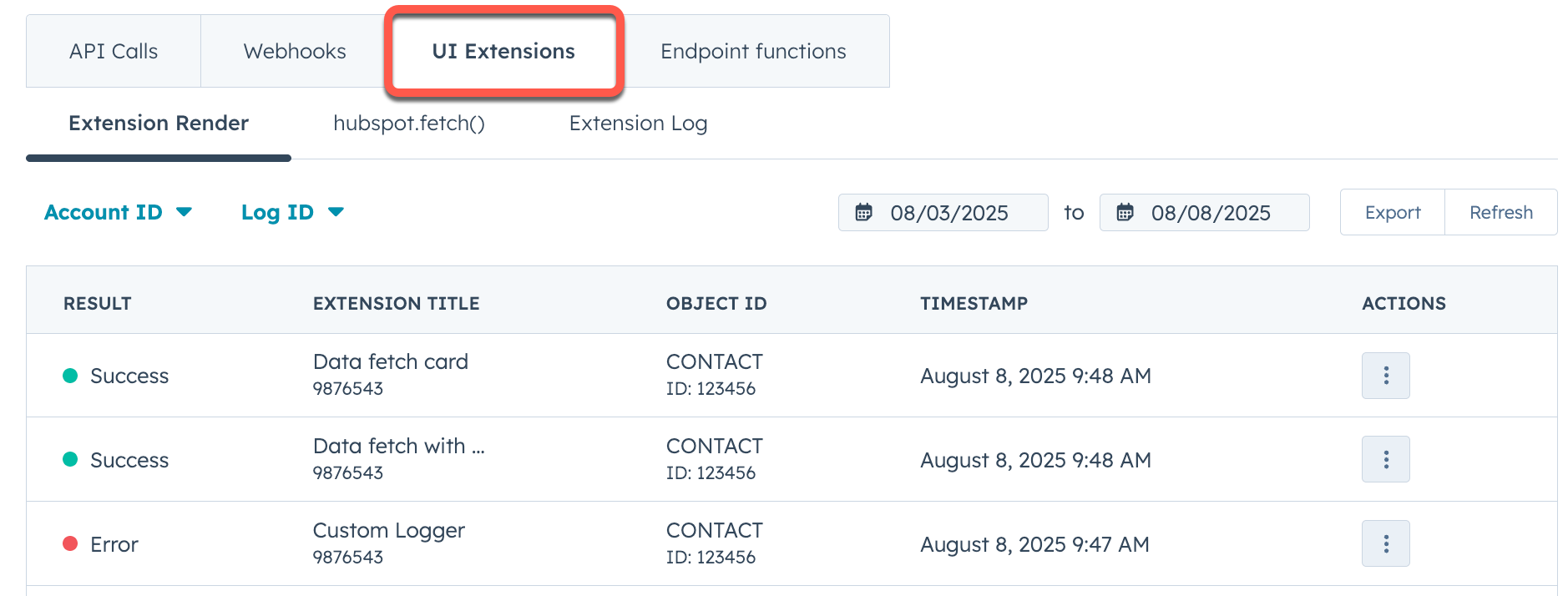

Monitoring and logs

To monitor app card activity, you can view request logs in HubSpot:

In your HubSpot account, navigate to Development.
In the left sidebar, navigate to Monitoring > Logs.
On the monitoring page, click the UI Extensions tab.

On the UI Extensions tab, use the tabs to view the various logs available. Learn more about monitoring and logging for UI extensions.

The hs.fetch tab of the app monitoring page in HubSpot.
