Last modified: August 22, 2025
The LineChart component renders a line chart for visualizing data. This type of chart is best suited for time series plots or trend data. Alternatively, you can use a BarChart component for comparing categorical data. Learn more about charts. To see an example of how to implement charts in a UI extension, check out HubSpot’s Charts example project.
linechart-diagram
  1. Title: the title of the chart.
  2. Legend: lists the data categories with their corresponding color for readability.
  3. Axis label: the label for the axis.
  4. Data labels: labels for data points.
import { LineChart } from '@hubspot/ui-extensions';

const salesOverTimeSample = [
  {
    Date: '2024-08-01',
    Sales: 10,
  },
  {
    Date: '2024-08-02',
    Sales: 30,
  },
  {
    Date: '2024-08-03',
    Sales: 60,
  },
];

return (
  <LineChart
    data={salesOverTimeSample}
    axes={{
      x: { field: 'Date', fieldType: 'datetime' },
      y: { field: 'Sales', fieldType: 'linear' },
    }}
    options={{
      title: 'My chart',
      showLegend: true,
      showDataLabels: true,
      showTooltips: true,
    }}
  />
);
ParameterTypeDescription
dataObjectAn object containing the chart’s data in an array.
  • Data should be formatted as comma-separated objects containing key-value pairs.
  • Data will be displayed in the order it’s provided, so any sorting will need to be done before passing it to the component.
  • While it’s recommended to pre-format your data to be human-readable, you can also provide the propertyLabels parameter via this prop’s options to relabel data values. See example in the Stacking section below.
Learn more about formatting data.
axesObjectConfigures the chart’s axes. Using the x and y fields, you’ll configure each axis individually with field and fieldType parameters, along with an optional label parameter:
  • field (Required): the field from your dataset to use. This value will be used as the displayed axis label if no label is specified.
  • fieldType (Required): the type of field. Can be category, datetime, or linear. Learn more about field types.
  • label: the axis label. If not specified, the field value will be used.
You can also include an options field to further configure the axes with the following options:Learn more about chart axes.
optionsObjectAdditional chart configuration options. Options include:
  • title (string): a title for the chart.
  • showLegend (boolean): set to true to display a legend above the chart.
  • showDataLabels (boolean): set to true to display labels above data points.
  • showTooltips (boolean): set to true to display tooltips for data points on hover.
  • colorList (array): specify a custom order for colors to used in the report.
Learn more about chart options.

​
Colors

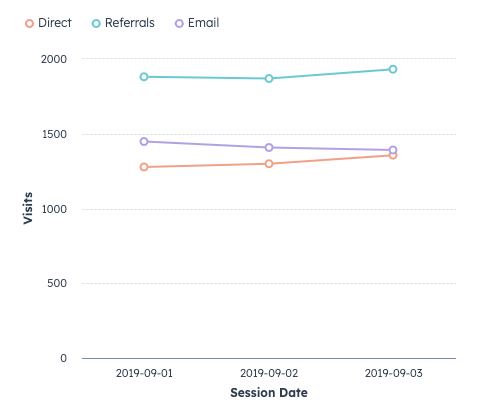

To apply colors to a chart for visual clarity, you can group data fields by color using the groupFieldByColor parameter within the axes options. For example, the line chart below use groupFieldByColor to add colors to each Breakdown category defined in the dataset.
linechart-with-colors
const VisitsPerSourceOverTime = [
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Direct',
    Visits: 1277,
  },
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Referrals',
    Visits: 1882,
  },
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Email',
    Visits: 1448,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Direct',
    Visits: 1299,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Referrals',
    Visits: 1869,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Email',
    Visits: 1408,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Direct',
    Visits: 1357,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Referrals',
    Visits: 1931,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Email',
    Visits: 1391,
  },
];

return (
  <LineChart
    data={VisitsPerSourceOverTime}
    axes={{
      x: { field: 'Session Date', fieldType: 'category' },
      y: { field: 'Visits', fieldType: 'linear' },
      options: { groupFieldByColor: 'Breakdown' },
    }}
    options={{ showLegend: true }}
  />
);

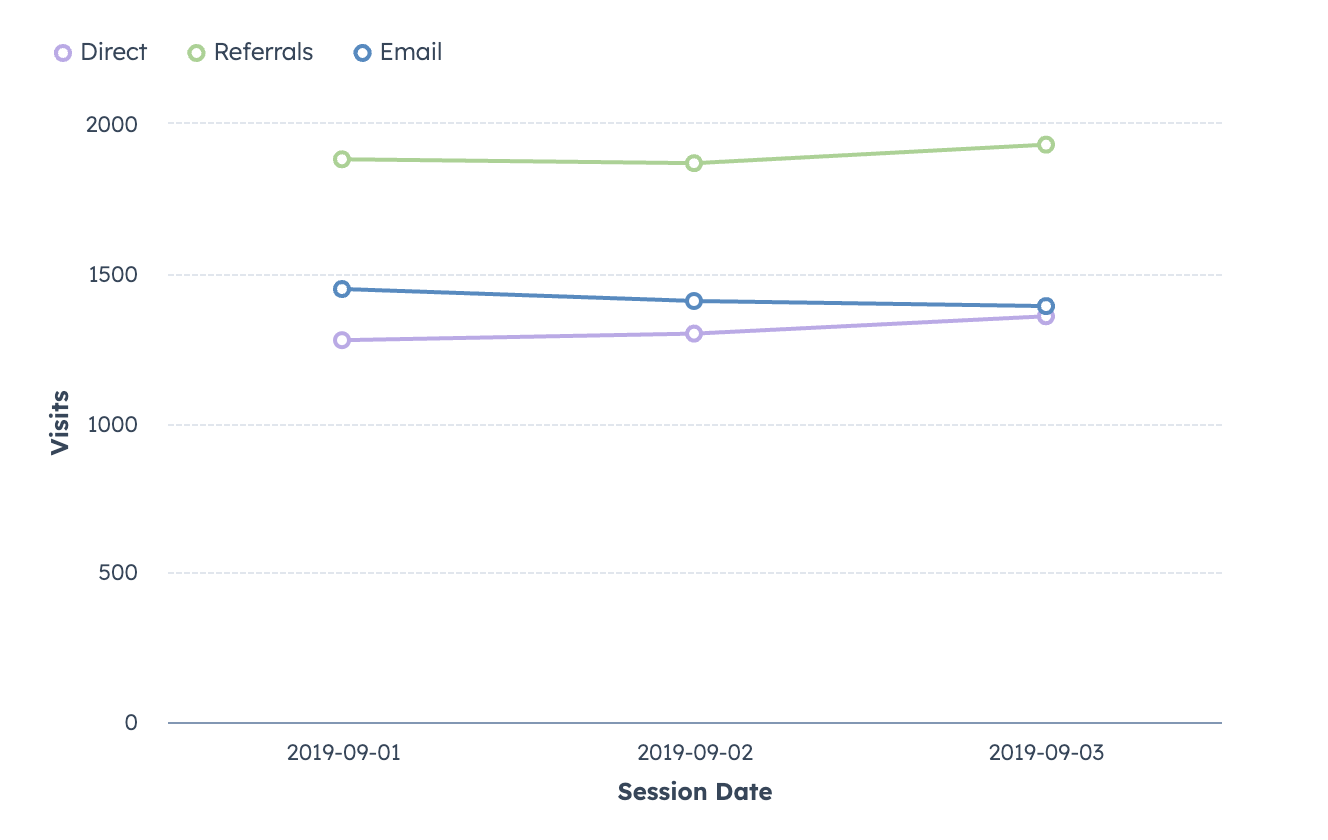

Colors will be automatically assigned in a preset order. To customize the color selection order, include the colorList field in the options prop, then specify the colors to pick from as shown below.
line-chart-with-updated-colorlist
const VisitsPerSourceOverTime = [
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Direct',
    Visits: 1277,
  },
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Referrals',
    Visits: 1882,
  },
  {
    'Session Date': '2019-09-01',
    Breakdown: 'Email',
    Visits: 1448,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Direct',
    Visits: 1299,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Referrals',
    Visits: 1869,
  },
  {
    'Session Date': '2019-09-02',
    Breakdown: 'Email',
    Visits: 1408,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Direct',
    Visits: 1357,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Referrals',
    Visits: 1931,
  },
  {
    'Session Date': '2019-09-03',
    Breakdown: 'Email',
    Visits: 1391,
  },
];

return (
  <LineChart
    data={VisitsPerSourceOverTime}
    axes={{
      x: { field: 'Session Date', fieldType: 'category' },
      y: { field: 'Visits', fieldType: 'linear' },
      options: { groupFieldByColor: 'Breakdown' },
    }}
    options={{
      showLegend: true,
      colorList: ['purple', 'green', 'darkBlue'],
    }}
  />
);

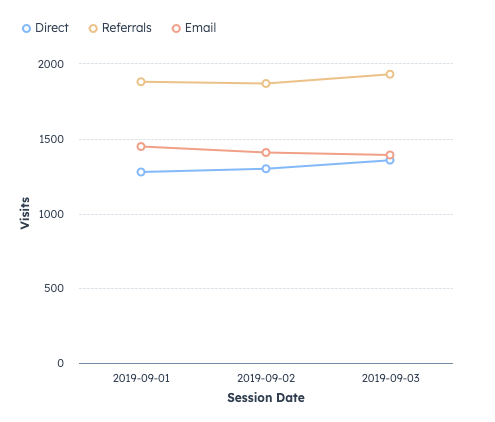

Or you can specify colors to use for specific values in the field specified in groupFieldByColor. To do so, include the colors field within the axes options, then specify each field value and color, as shown below. Learn more about colors.
linechart-with-specified-colors
return (
  <LineChart
    data={VisitsPerSourceOverTime}
    axes={{
      x: { field: 'Session Date', fieldType: 'category' },
      y: { field: 'Visits', fieldType: 'linear' },
      options: {
        groupFieldByColor: 'Breakdown',
        colors: {
          Direct: 'blue',
          Email: 'orange',
          Referrals: 'yellow',
        },
      },
    }}
    options={{ showLegend: true }}
  />
);

​
Stacking

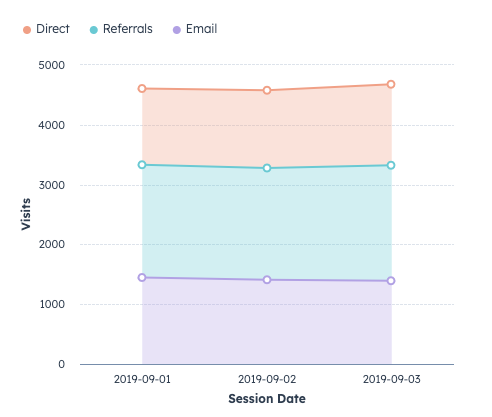

Use the stacking axes option to stack grouped data for visual comparison. For example, the following line chart displays website visits over time broken down by source. To help users compare data within each breakdown category, stacking has been set to true.
line-chart-stacked-data
const visitsPerSourceOverTime = [
  {
    sessionDate: '2019-09-01',
    breakdown: 'direct',
    visits: 1277,
  },
  {
    sessionDate: '2019-09-01',
    breakdown: 'referrals',
    visits: 1882,
  },
  {
    sessionDate: '2019-09-01',
    breakdown: 'email',
    visits: 1448,
  },
  {
    sessionDate: '2019-09-02',
    breakdown: 'direct',
    visits: 1299,
  },
  {
    sessionDate: '2019-09-02',
    breakdown: 'referrals',
    visits: 1869,
  },
  {
    sessionDate: '2019-09-02',
    breakdown: 'email',
    visits: 1408,
  },
  {
    sessionDate: '2019-09-03',
    breakdown: 'direct',
    visits: 1357,
  },
  {
    sessionDate: '2019-09-03',
    breakdown: 'referrals',
    visits: 1931,
  },
  {
    sessionDate: '2019-09-03',
    breakdown: 'email',
    visits: 1391,
  },
];

return (
  <LineChart
    data={{
      data: visitsPerSourceOverTime,
      options: {
        propertyLabels: {
          breakdown: {
            direct: 'Direct',
            email: 'Email',
            referrals: 'Referrals',
          },
        },
      },
    }}
    axes={{
      x: { field: 'sessionDate', fieldType: 'category', label: 'Session Date' },
      y: { field: 'visits', fieldType: 'linear', label: 'Visits' },
      options: { groupFieldByColor: 'breakdown', stacking: true },
    }}
    options={{ showLegend: true }}
  />
);
Because the breakdown field data is all lowercase (e.g., direct), the data prop includes propertyLabels in its options to convert the labels. Note that the data prop formatting is slightly different to accommodate both the dataset and its options. Learn more about data options.

​
Guidelines

  • DO: title your data categories with human-readable text so they are easy to understand.
  • DO: use sentence-casing for the data categories and chart title (only first letter capitalized).
  • DO: sort your data in ascending/descending order of your x-axis field to prevent unordered rendering prior to passing it to a charting component. If you intend to display information over time, your data will be displayed in the order you provide it.
  • DO: display the chart legend if you’re graphing more than one category of data. This prevents your users from having to rely only on color to identify different data on your chart.
  • DO: for readability, use larger surfaces to showcase charts, such as the record page middle column. Avoid using charts with many data points on smaller surfaces such as the preview panel or sidebar.
  • DON’T: use more than 14 data categories unless it cannot be avoided for your use case.
  • DON’T: use the same colors to indicate different data categories.
