Last modified: August 22, 2025

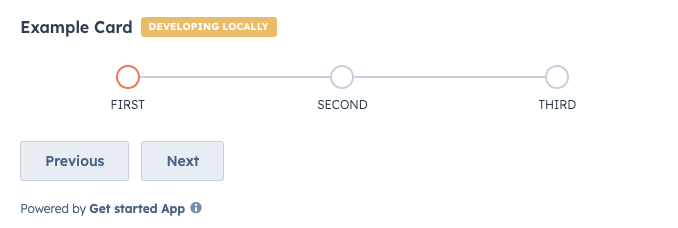

The StepIndicator component renders an indicator to show the current step of a multi-step process.
ui-extension-component-stepindicator
import { Flex, Box, StepIndicator, Button } from '@hubspot/ui-extensions';

hubspot.extend(() => <Extension />);

function Extension() {
  const [currentStep, setCurrentStep] = useState(0);

  return (
    <Flex direction="column" gap="md">
      <StepIndicator
        currentStep={currentStep}
        stepNames={['First', 'Second', 'Third']}
      />
      <Box>
        <Button onClick={() => setCurrentStep(currentStep - 1)}>
          Previous
        </Button>
        <Button onClick={() => setCurrentStep(currentStep + 1)}>Next</Button>
      </Box>
    </Flex>
  );
}
PropTypeDescription
circleSize'xs', 'extra-small', | 'sm', 'small' (default) | 'md', 'medium' | 'lg', 'large' | 'xl', 'extra-large'The size of the indicator circles. See the variants section for examples of sizing.
currentStepNumberThe currently active step. Steps are zero-based, meaning the first step is assigned 0.
direction'horizontal' (default) | 'vertical'The orientation of the indicator.
stepNamesArrayAn array containing the name of each step.
variant'flush' | 'default' (default) | 'compact'Sets component spacing.
  • compact: only shows the title of the currently active step.
  • flush: only shows the title of the currently active step and removes left and right margin.
onClick(stepIndex: number) => voidA function that is invoked when a step in the indicator is clicked. The function receives the current step index as an argument (zero-based). Use this to update the currently active step.

​
Variants

By default, the step indicator will be laid out horizontally, but you can use the direction prop to set the orientation to vertical instead.
stepindicator-vertical-alignment

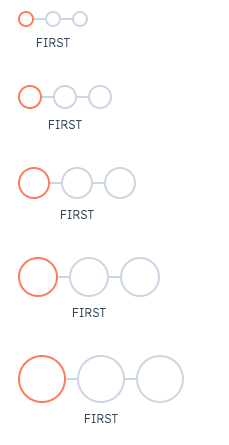

In addition, you can set the size of the step circles using the circleSize prop, ranging from 'xs'/'extra-small' to 'xl'/'extra-large'.
stepindicator-circlesize-variations
