Last modified: August 22, 2025
By default, UI extension components will arrange themselves based on their content, order, and any layout-related props included with the component, such as the width prop for images. But you can further configure your extension’s layout using the Flex, Box, and Inline components, which are based on the CSS flexbox layout. The Flex, Box, and Inline components act as wrappers for other components. Flex can be used on its own, while Box can be used inside Flex to fine tune spacing of child components. The Inline component can be used on its own to automatically arrange child components in a horizontal row. Below, learn more about each component along with usage examples. Check out HubSpot’s Managing layout: Flex and Box sample project to view a full example of using Flex and Box.
flex-playground-card-demo

​
Flex

The Flex component renders an empty div container set to display=flex. When wrapped around other components, this enables those child components to be arranged using props. Below are the available Flex props. To review all Flex prop definitions, check out the components reference guide.
PropValuesDescription
directionrow (default) | columnArranges components horizontally or vertically by setting the main axis.
justifystart (default) | center | end | around | betweenDistributes components along the main axis using the available free space.
alignstart | center | baseline | end | stretch (default)Distributes components along the cross-axis using the available free space.
alignSelfstart | center | baseline | end | stretchDistributes a child component along the cross-axis using the available free space. Use this prop for nested child Flex and Box components to align them differently from other child components in the Flex group.
wrapwrap | nowrapWhether components will wrap instead of trying to fit on one line.
gapflush (default) | extra-small | small | medium | large | extra-largeSets the spacing between components.
Review the examples below to see how the Flex component can be used to arrange components in various ways.

​
Horizontal layout

To arrange components horizontally, set direction to row. Then, use justify to configure the horizontal distribution. By default, components will stretch across the container if justify is not specified. To arrange components horizontally and evenly spaced:

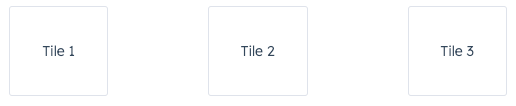

flex-tiles-justify-between
<Flex direction={'row'} justify={'between'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

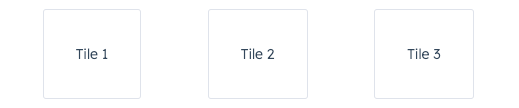

To arrange components horizontally, evenly spaced, and with equal spacing on the left and right margins:
flex-tiles-justify-around
<Flex direction={'row'} justify={'around'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

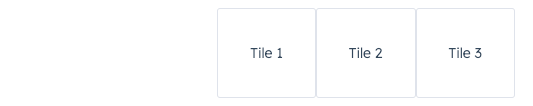

To arrange components horizontally at the end of the extension container:
ui-extensions-layout-tile-justify-end
<Flex direction={'row'} justify={'end'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

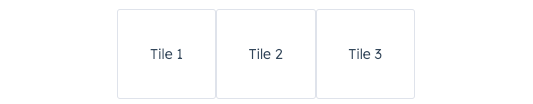

To arrange components horizontally at the center of the extension container:
ui-extensions-layout-tile-justify-center
<Flex direction={'row'} justify={'center'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

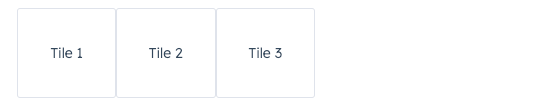

To arrange components horizontally at the start of the extension container:
ui-extensions-layout-tile-justify-start
<Flex direction={'row'} justify={'start'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

​

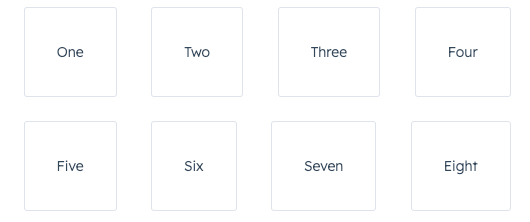

Wrap

By default, components in a row will be arranged on one line when possible. Use the wrap prop to wrap components onto new lines when needed.
ui-extensions-layout-tile-row-wrap
<Flex direction={'row'} justify={'between'} wrap={'wrap'} gap={'medium'}>
  <Tile>One</Tile>
  <Tile>Two</Tile>
  <Tile>Three</Tile>
  <Tile>Four</Tile>
  <Tile>Five</Tile>
  <Tile>Six</Tile>
  <Tile>Seven</Tile>
  <Tile>Eight</Tile>
</Flex>

​
Vertical layout

To arrange components vertically, set direction to column, then use the align prop to distribute them. By default, components will stretch across the extension container width when align is not specified. To arrange components vertically at the start of the extension container:

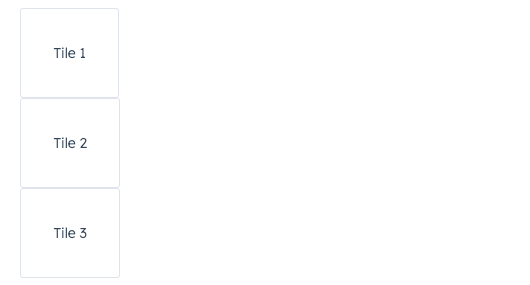

ui-extensions-layout-tile-column-align-start
<Flex direction={'column'} align={'start'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>
To arrange components vertically at the center of the extension container:

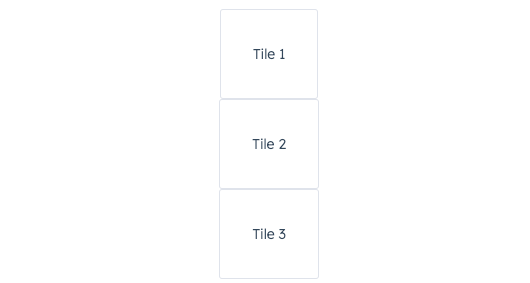

ui-extensions-layout-tile-column-align-center
<Flex direction={'column'} align={'center'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>
To arrange components vertically at the end of the extension container:

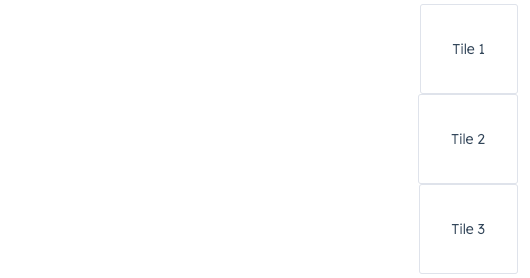

ui-extensions-layout-tile-column-align-end
<Flex direction={'column'} align={'end'}>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

​
Spacing

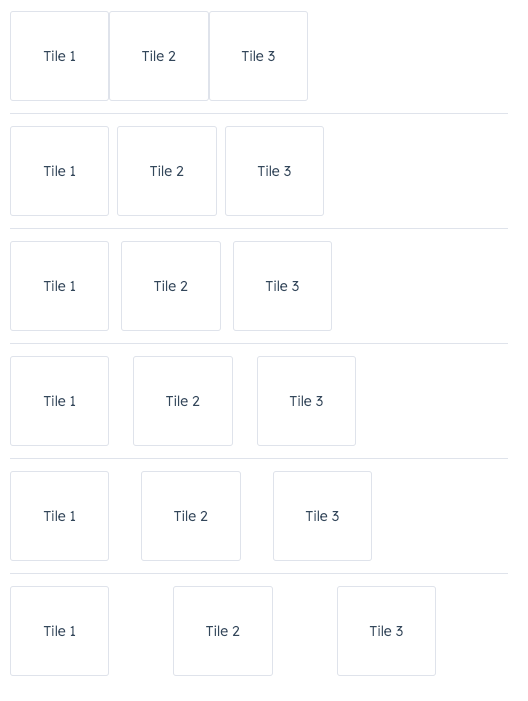

In the Flex component, you can use the gap prop to apply even spacing between the tiles. This prop will apply spacing equally for both row and column directions.
flex-tiles-gap
<Flex
  direction={'row'}
  justify={'start'}
  gap={'flush' | 'extra-small' | 'small' | 'medium' | 'large' | 'extra-large'}
>
  <Tile>Tile 1</Tile>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>

​
Using Flex in Flex

You can wrap child Flex components with Flex to set more specific rules for individual components. A child Flex component will not inherit props specified in the parent Flex component, so you’ll need to repeat any props you’ve previously defined to maintain them.

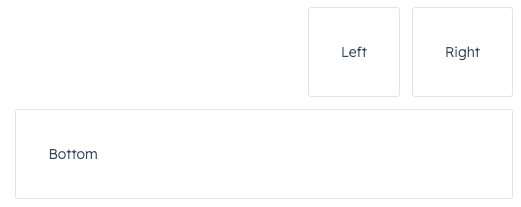

ui-extension-components-flex-child
<Flex direction={'row'} justify={'end'} wrap={'wrap'} gap={'small'}>
  <Tile>Left</Tile>
  <Tile>Right</Tile>
  <Flex direction={'column'}>
    <Tile>Bottom</Tile>
  </Flex>
</Flex>

​
Box

When wrapping components with Flex, you can further configure individual component layout by wrapping a child of Flex in a Box component. This component supports the following props. To review all Box prop definitions, check out the components reference guide.
PropValuesDescription
alignSelfstart | center | baseline | end | stretchDistributes a child component along the cross-axis using the available free space. Use this prop for nested child Flex and Box components to align them differently from other child components in the Flex group.
flexinitial (default) | auto | none | numberDistributes components based on the available empty space around them.

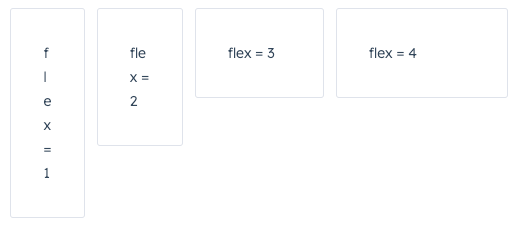

Use the flex prop in a Box component to assign any extra spacing to components using either a default value (e.g. auto) or a specific number. When using a number, the components will be distributed based on the ratio of their assigned numbers. For example, the four tiles below take up an increasing amount of space based on their flex values.
ui-extensions-layout-box
<Flex direction={'row'} justify={'start'} gap={'small'}>
  <Box flex={1}>
    <Tile>flex = 1</Tile>
  </Box>
  <Box flex={2}>
    <Tile>flex = 2</Tile>
  </Box>
  <Box flex={3}>
    <Tile>flex = 3</Tile>
  </Box>
  <Box flex={4}>
    <Tile>flex = 4</Tile>
  </Box>
</Flex>
When using Box, you only need to wrap components that you want to adjust. For example, if you wrap one component in a Box with a flex value, only that one component will have its width adjusted based on the available empty space.
ui-extension-components-box-flex
<Flex direction={'row'} justify={'start'} gap={'small'}>
  <Box flex={1}>
    <Tile>Tile 1</Tile>
  </Box>
  <Tile>Tile 2</Tile>
  <Tile>Tile 3</Tile>
</Flex>
When setting a flex value for only one Box, you can use any number. This is because any number on its own will result in all available space being assigned to that one component.

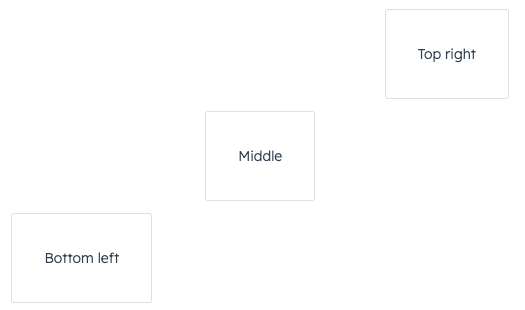

You can also use the alignSelf prop to override alignment rules for individual Box components.
ui-extensions-layout-box-alignself
<Flex direction={'column'} gap={'small'} align={'start'}>
  <Box alignSelf={'end'}>
    <Tile>Top right</Tile>
  </Box>
  <Box alignSelf={'center'}>
    <Tile>Middle</Tile>
  </Box>
  <Tile>Bottom left</Tile>
</Flex>

​
Inline

Use the Inline component to organize child components into a horizontal row.

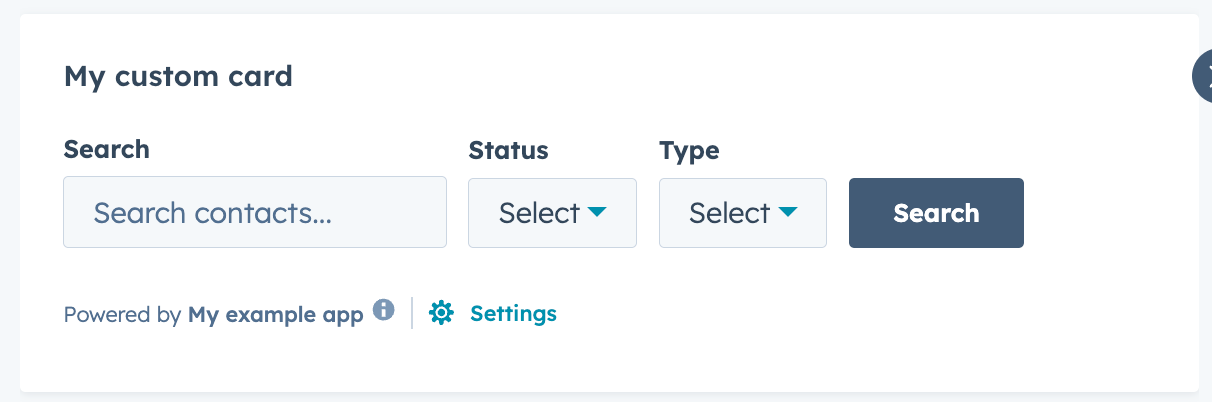

Screenshot of the Inline component used in an app card on the contact record.
import { Inline, Input, Select, Button, hubspot } from '@hubspot/ui-extensions';

hubspot.extend(() => <Extension />);

function Extension() {
  return (
    <>
      <Inline gap="small" align="end" justify="start">
        <Input
          label="Search"
          placeholder="Search contacts..."
          name="search"
        />
        <Select
          label="Status"
          options={[
            { label: 'All', value: 'all' },
            { label: 'Active', value: 'active' },
            { label: 'Inactive', value: 'inactive' }
          ]}
          name="status"
        />
        <Select
          label="Type"
          options={[
            { label: 'All Types', value: 'all' },
            { label: 'Leads', value: 'leads' },
            { label: 'Customers', value: 'customers' }
          ]}
          name="type"
        />
        <Button variant="primary">Search</Button>
      </Inline>
    </>
  );
}
PropTypeDescription
gap'flush' (default) | 'extra-small', 'xs' | 'small', 'sm' | 'medium', 'md' | 'large', 'lg' | 'extra-large', 'xl'The amount of spacing between components.
justify'start' (default) | 'center' | 'end' | 'around' | 'between'Distributes components along the main axis using the available free space.
align'start' | 'center' | 'end' | 'baseline' | 'stretch' (default)Distributes components along the cross-axis using the available free space.
